SmartCoop
A high level description on the hardware design
Please note this description of the hardware is just a very high level description of the key components that I used and if you wanted to build your own, I suspect you would need a basic understanding of digital electronics, embedded software development and electrical wiring.
A more technical description of the GEN4.x design and the custom PCB can be found here: Readme.MD
A complete wiring diagram for the system can be found here : GEN4-Wiring.pdf
The schematic diagram for the custom PCB can be found here : GEN4-Schematic.pdf
The hardware design is composed of the following key components
- Raspberry Pi Zero 2W
- A supporting PCB
- Any 12VDC Solar Regulator (5amp)
- Any 12Vdc Solar Panel (~100W)
- Deep cycle 12VDC Battery
- 1 x 12VDC Water Solenoid
- 2 x 12VDC electric motors (geared ~23rpm)
- 5 x Inductive Proximity Sensor Switch PNP DC6V-36V (LJ12A3-4-Z/BY)
- 1 x Single Float Value Switch (12VDC)
- 20kg Load Cell
- A suitable water proof enclosure (IP66) with clear Front Door to house the PCB and solar regulator
Raspberry Pi Zero 2WThe Raspberry PI sits at the core of the design and the latest generation of the Supporting PC has been design so that you can solder a 90 degree din socket onto the I/O header and then plug it directly into the supporting PCB, which supplies the power to the Raspberry via the I/O header |
![]() |
The Custom PCBThe custom designed, surface mount PCB provides a wide range of additional sensor support support via digital I/O of the raspberry, 24bit ADC, Real Time Clock (RTC) and the ESP32-S3 micro that provides a lot of the functionality including controlling the power to the RaspberryPI.The PCB has been designed using the Open Source KiCAD and was laid out via FreeRouter which can be downloaded from Github. A PDF printout of the Schematic is available and the KiCAD version can be found in the CAD folder of the GIT repository. This is the 4th generation of the PCB and all of the components are SMD, except the edge connectors. You will find the Kicad Project and the resulting Geber files in the CAD folder of the GIT Respository | ![]() |
Any 12VDC Solar Regulator / chargerAny basic 12VDC solar panel / charging unit will do the job. I used a relatively cheap MPPR unit from Ebay, which had a range of built in protection and an LCD read out and a secondary load switch The typical load of the Raspberry, touch screen and supporting PCB is less than 330ma, so I used a 5amp unit to give me plenty of capacity in the power and charging circuits. |
![]() |
A 12VDC Solar PanelAny greater than 80W 12VDC solar panel will do the job. I used a relatively cheap 140W unit from Ebay, to give me plenty of capacity in the power and charging circuits. |
![]() |
A 12VDC Deep Cycle BatteryAny 12VDC Deep Cycle Battery will do the job. I used a relatively cheap 24AH sealed version, to give me additional storage capacity for the winter months, which have shorter days and typically overcast. You may be able to use a smaller capacity battery, if you increased amount of time that system is in standby mode (Raspberry and Touch Screen are powered down) |
![]() |
A 12VDC Water Value / SolenoidAny 12VDC Water Value will do the job. I used a more expensive brass model with a 1/2 inch thread, because of the high water pressure that the header tank generates. If you don't have this issue, you could use one of the plastic models that are listed on Ebay |
![]() |
23RPM 12VDC Reversible Electric Motor & V Type PulleyAny Geared ~23RPM 12VDC motor will be able to handle role of the motors that open the main and yard gate doors. I used these from AliExpress that also have 2 x built-in encoders that the system can use to detect a jammed or stopped door |
![]() ![]() |
5 x Inductive Proximity Sensor Switch PNP DC6V-36VEarly in the design, I was just using simple reed switches for the gate position sensors, but after burning out a couple of motors because the sensor had not worked correctly, I swapped these out for the Inductive Sensors instead. The inductive sensors are more expensive than reed switches, but once they are positioned correctly, they haven't missed a beat. The application will assume that PNP (Source not sink) are being used, but the software could be easily changed to use NPN sensors instead (I may make this a configurable value in the future). I purchased these from Ebay and the P/N is: LJ12A3-4-Z/BY |
![]() |
1 x Single Float Value Switch (12VDC)Any simple float value switch can be used to close the water value when filling the Water Tank. I used a stainless steel version from Ebay |
![]() |

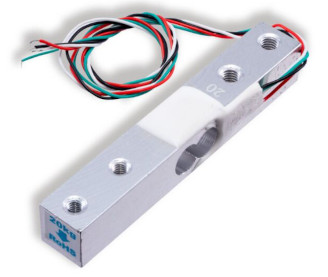

20kg Load CellThese 20Kg load cells will be used to monitor the weight of the feeder, to determine how much chicken food remains |
![]() |
